Grinding Machine Timer

Hence it is a Mili Seconds Timer developed for Grinding machine Timer
Specially Designed for Grinding Machine Feed Operation

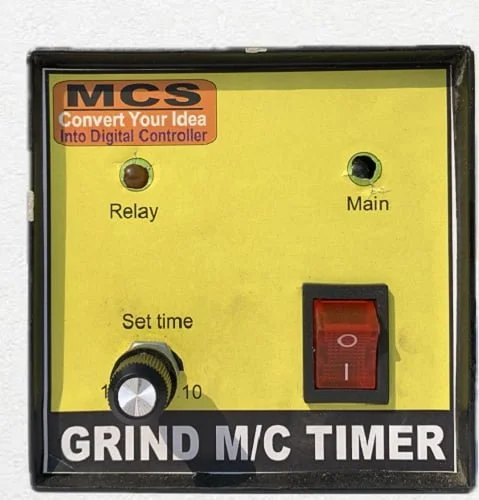

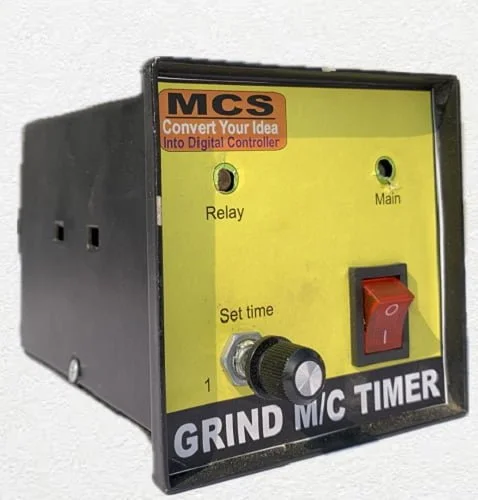

Set Value of Preset Time in analog type Timer

Hence there are 2 types of timer 1st is analog type and 2nd is micro-controller based. While in analog type timer we may set time by rortating its knobe. Hence in case of Digital timer Micro-controller based we have to follow few steps.

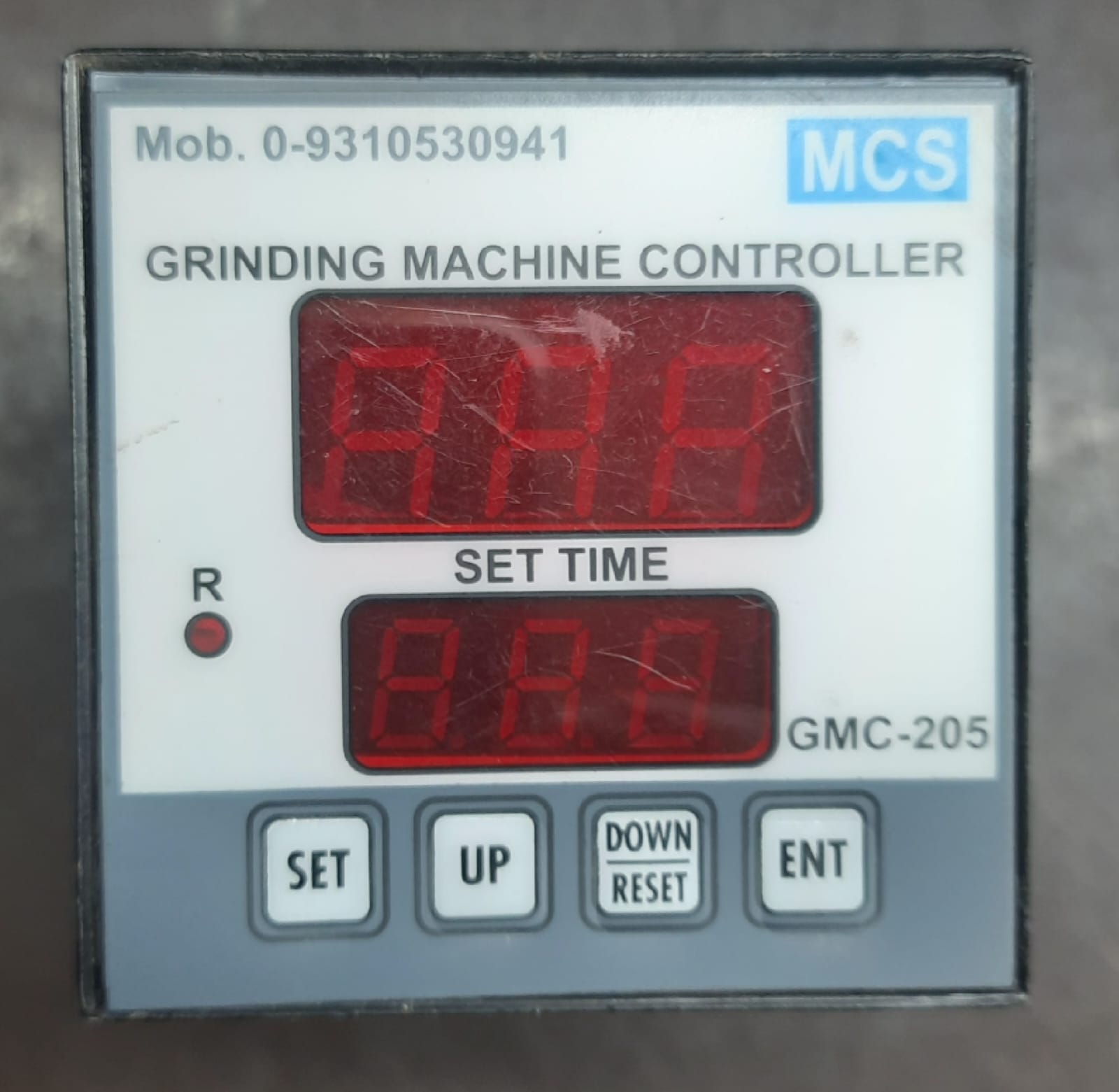

Set Value of Preset Time in Digital Micro – controller based timer

Push SET Button Once, use UP and DN buttons to adjust the required value, Press ENT button to save Preset Value

Technical Specifications: Grinding Machine Timer

1. Range 000 t0 999 Sec/Min/Hours
2. Accuracy: 0.1%
3. Display: 3 Digit LED 0.56 Inch character height
4. Relay Operation Guaranteed within 0.1 Second
5. Supply: 220 Vac
6. Body Plastic ABS

Digital Timer
