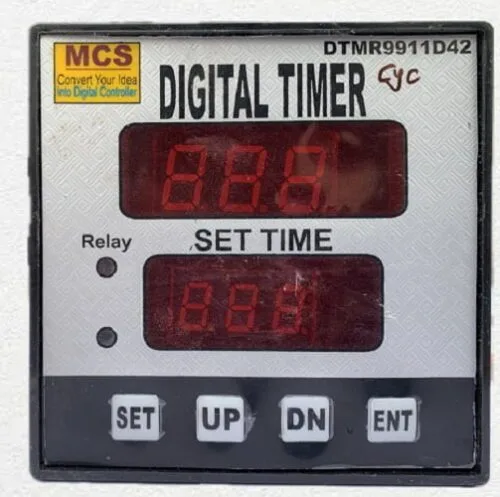

Digital Timer

1,500

10 Days Returnable;
Heavy Duty Industrial use 24×7 working
Warranty 1 Year

+ -

Digital Timer

Digital Timer, Electronic Timer, Automatic Timer used to measure Time of any process, This Timer has 1 Set-point and 1 potential-free relay out, which change its state at set time is achieved.

Digital Timer

Follow the Instruction for

Setting Value of Preset Time

Push SET Button Once, use UP and DN buttons to adjust the required value, Press ENT button to save Preset Value
Set Min / Sec / Hours
Switch OFF the Power + Push SET Button with ENT at Once, switch ON the Power, use the UP and DN buttons to Select the required value, Press the ENT button to save
Set Decimal Point
Press SET and DN Button at Once, Switch ON the Power, Set Decimal Point if required, Press ENT button to save

Technical Specifications:
1. Range 000 t0 999 Sec/Min/Hours
2. Accuracy: 0.1%
3. Display: 3 Digit LED 0.56? character height
4. Relay Operation Guaranteed within 0.1 Second
5. Supply: 220 Vac
6. Body Plastic ABS

  • Technical Specifications:
  1. Range 000 t0 999 Sec/Min/Hours
  2. Accuracy: 0.1%
  3. Display: 3 Digit LED 0.56 Inch character height
  4. Relay Operation Guaranteed within 0.1 Second
  5. Supply: 220 Vac
  6. Body Plastic ABS

Digital Timer

Digital timer 3 Digits Double Display
works in Seconds, Minutes and Hours

Based on 0 reviews

0.00 Overall
0%
0%
0%
0%
0%
Be the first to review “Digital Timer”

Your email address will not be published.

Reviews

There are no reviews yet.
